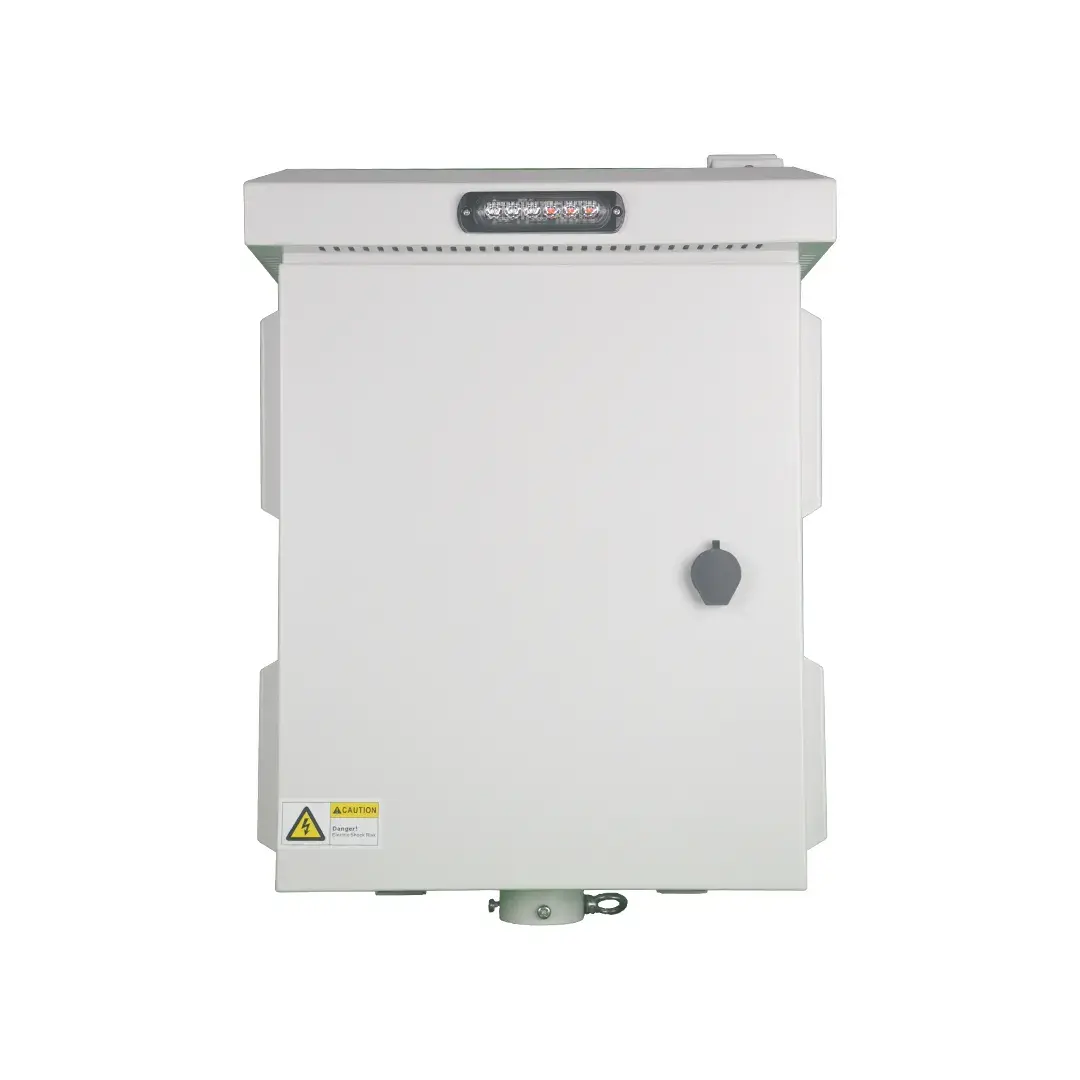

Welcome to the Cloud 504 Technologies product handbook for our versatile installation unit, designed to enhance your security and monitoring capabilities. This unit is ideal for housing various external devices such as PTZ IPCs, DOME IPCs, Bullet IPCs, and IP speakers. It also provides a secure space for essential interior components like NVRs, 4G routers, and POE switches.
Key features
- Supports installation of PTZ IPC, DOME IPC, Bullet IPC, and IP speakers externally.
- Accommodates NVRs, 4G routers, and POE switches internally.
- Configured for an AC power supply input line with a maximum of 110V and 1.5KW.
- Includes two built-in power output sockets, each capable of a maximum load of 110V and 550W.
- Features five DC power output ports with a total output power of 255W.
- Equipped with a built-in AC input switch for easy control.
- Contains a built-in door alarm switch that outputs a normally closed alarm signal.
- Comes with a built-in temperature control cooling fan that activates at 45°C.
- Mountable on walls or poles for flexible installation options.
- Includes a red and blue flashing warning light for alert purposes.
- Offers three open modes: normally open, normally closed, and alarm input activated.
Technical specifications
- Input Voltage: 110V AC
- Maximum Power Input: 1.5KW
- Power Output Sockets: 2 (max load of 110V, 550W each)
- DC Power Output: 5 ports (total output of 255W)
- Cooling Fan Activation: 45°C
- Alarm Signal Type: Normally closed
- Mounting Options: Wall or pole
- Warning Light: Red and blue flash-down
- Open Modes: Normally open, normally closed, alarm input on
Performance and reliability details
This installation unit is built to provide dependable performance under various environmental conditions. The integrated cooling fan ensures optimal operation by preventing overheating, while the power output sockets are designed to handle significant loads without compromising safety. The included door alarm switch enhances security and can be easily integrated into your existing security systems.
Use-case recommendations
Ideal for use in security monitoring scenarios, this unit can be employed in areas requiring surveillance, such as retail environments, parking lots, and public spaces. It is also suitable for deploying IP speakers in facilities that require real-time communication or alerts. The flexibility in mounting options makes it convenient for various applications, whether on walls or poles, allowing you to adapt your setup according to your specific needs.
Compliance or warranty information
Cloud 504 Technologies ensures that this product meets industry standards for safety and reliability. We offer a warranty that covers defects in materials and workmanship, providing you with peace of mind with every purchase. For detailed terms and conditions of the warranty, please refer to the warranty documentation provided at the time of purchase.
Closing notes
Thank you for considering the Cloud 504 Technologies installation unit to enhance your security infrastructure. Our team is committed to providing quality products and support. Please feel free to reach out to us for purchasing information or assistance at any time.
